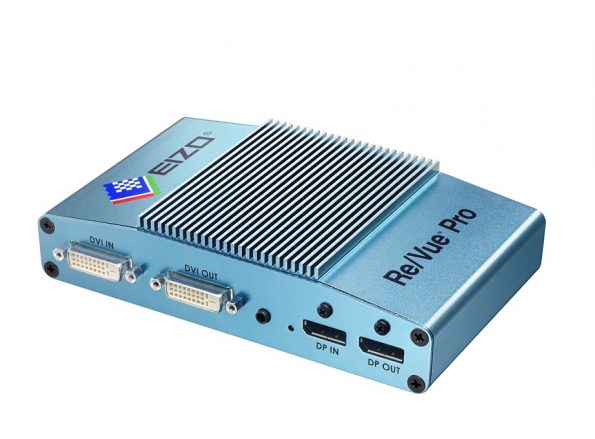

Re/Vue Pro

Re/Vue Pro

Lossless Video Encoding & Streaming Solution

Lossless, Fail-Safe, Reliable Encoding & Streaming Solution


Τηλέφωνο επικοινωνίας 210-8072800

Περιγραφή Προϊόντος

Case Studies

Lossless Encoding and Compression

The Re/Vue Pro offers lossless video encoding and streaming of connected DVI or DisplayPort video signals to third-party monitoring or recording applications. It supports resolutions of up to 2048 × 2160 via DVI and 4096 × 2160 via DisplayPort. Lossless encoding maintains the quality of the original source data while industry-leading compression ratios of 8,000:1 to 30,000:1 minimize required storage for large volume image data. Frame rate can be configured for acquiring the ideal balance between maintaining high image quality and reducing data size. In addition, bandwidth usage is less susceptible to peaks due to intelligent sampling of the video data source.

Stream ATC video data with resolutions up to 4096 × 2160.

Seamless Integration

The Re/Vue Pro can be seamlessly integrated into third party solutions such as those provided by ATC system integrators and recording solution providers. Fully detailed APIs including playback decoding and streaming are provided together with full Simple Network Management Protocol (SNMP) interface details.

Long-Term Assurance

The Re/Vue Pro is platform and graphics card independent so it is unaffected by any changes that may occur to the system. In addition, it is equipped with DVI and DisplayPort connections to ensure future support of any changes or upgrades to the system.

Infield Software Updates

The Re/Vue Pro is capable of infield software updates through the LOC2 application. This minimizes downtime by ensuring that the latest features and enhancements are applied quickly and easily over the local network without needing to remove the product.

Mission-Critical Redundancy

Dual Ethernet outputs and dual external power supplies ensure continued operation in the event of external failure of a connected power source or network. Video from each of the connected video inputs can be simultaneously streamed across each of the Ethernet adaptors to independent networks. This allows users to both monitor a live video stream from a remote location and send the data to a back-end storage solution at the same time.

Industrial-Grade Reliability

The Re/Vue Pro is a fanless solution built with no mechanical parts for high durability in mission-critical environments.

Centralized Control

SNMP supports remote configuration as well as diagnostic monitoring of connected Re/Vue devices. In addition, the Re/Vue Pro can be managed through a web interface with configurations and control features or through the Re/Vue Lights Out Configuration 2 (LOC2) utility which is included free with the unit. This provides extensive flexibility in system administration, allowing you to manage an entire network from a centralized location.

LOC2 provides centralized management for multiple Re/Vue devices within a Local Area Network (LAN)

Video Compression Ratio (Based on typical ATC data) 8,000:1 to 30,000:1 (Actual compression ratio varies with configuration parameters and video type)
Supported Resolutions DVI or DisplayPort: 1280 x 1024, 1600 x 1200, 1920 x 1080, 1920 x 1200, 1920 x 2160, 2560 x 1440, 2560 x 1600, 2048 x 2048, 2048 x 2160

DisplayPort only: 3840 x 2160, 4096 x 2160
Maximum Video Resolution 4.2MP – 2048 x 2160 dual link DVI
Maximum Frames Per Second 85 Hz for most resolutions (60 Hz for dual link resolutions)
Video Connectors Dual link DVI-D input and output with full EDID/DDC support; DisplayPort input and output (v1.2)
Optical Drive
Typical Power Consumption 20 W
Dimensions (W x H x D) 164 mm x 38 mm x 104 mm
Net Weight 0.369 kg / 0.814 lbs
Ethernet 2 GbE – SNMP Management
Warranty 2 years
